Overview

CleverTap supports full payload encryption for outbound engagement messages and inbound callbacks exchanged with Communication Platform as a Service (CPaaS) providers. This feature ensures that sensitive customer data, such as email addresses, phone numbers, and message content, remains protected and compliant with enterprise security standards.

With CPaaS encryption enabled, CleverTap encrypts all engagement payloads before sending them to the CPaaS provider, and the CPaaS provider encrypts all callbacks before sending them back to CleverTap.

CPaaS encryption is currently supported for the following communication channels:

• Email
• SMS

CleverTap’s universal CPaaS encryption framework supports any HTTP-based CPaaS integration configured through the Generic HTTP API.

Encryption Workflow

CleverTap secures communication between its platform and CPaaS providers by encrypting outbound message payloads and decrypting inbound callbacks. This workflow ensures complete end-to-end encryption for all supported channels, Email and SMS, throughout message delivery and reporting.

The process includes the following steps:

1. Encryption Keys
   CleverTap generates AES-256 encryption keys and securely shares them with CPaaS providers through a controlled key exchange process. Each key is versioned to ensure secure rotation and backward compatibility.

2. Outbound Encryption (CleverTap → CPaaS)
   CleverTap encrypts the entire outbound message payload before transmitting it to the CPaaS provider through the Generic HTTP API. Each encrypted payload includes the following:

3. Callback Encryption (CPaaS → CleverTap)
   The CPaaS provider encrypts callback payloads (such as delivery reports, bounce events, or engagement data) before sending them back to CleverTap. CleverTap decrypts these payloads using the key version and IV specified in the callback headers.
4. Decryption and Processing
   CleverTap decrypts the callback data received, validates its integrity, and updates message delivery, engagement metrics, or status reports in real time.

This unified workflow defines how encrypted data is exchanged in both directions, ensuring that all sensitive user and message information remains protected from transmission to reporting.

Configuration and Key Management

To enable CPaaS encryption, you must configure the encryption keys that secure data exchange between CleverTap and your CPaaS provider. This section explains how to obtain and manage these keys to maintain a secure and reliable encryption framework.

Follow these steps to complete the setup:

1. Obtain Encryption Keys
2. Manage Keys

Obtain Encryption Keys

Before you enable CPaaS encryption, you must obtain encryption keys that secure all data exchanged between CleverTap and the CPaaS provider. These keys form the foundation of the encryption framework and ensure that each payload, including outbound messages and inbound callbacks, is encrypted and decrypted correctly.

CleverTap manages this process by the following:

• Generating and maintaining AES-256 encryption keys internally.
• Assigning each key a unique UUID-based version identifier.
• Sharing the keys securely with the CPaaS provider through an approved exchange process.
• Ensuring CleverTap and the provider securely store the keys within their environments.

Manage Keys

CleverTap manages the complete encryption key lifecycle to maintain continuous data protection and compliance with enterprise-grade security standards.

The following are the essential key management practices:

• Keys are stored using CleverTap’s enterprise-grade secret management systems.
• Keys are securely shared with each CPaaS provider during setup.
• Each encrypted payload includes a version identifier that allows CleverTap to fetch the correct key for decryption.

Key Rotation

CleverTap periodically rotates encryption keys to maintain a high level of security without disrupting service. Each payload’s key version ensures backward compatibility, allowing CleverTap to decrypt messages encrypted with older keys until all in-flight payloads are processed. Key rotation intervals are managed internally by CleverTap to ensure seamless continuity and security compliance.

Channel-Specific Setup

The Channel-Specific Setup section provides detailed instructions for enabling encryption on each communication channel. It explains configuration fields, authentication options, and example payloads that ensure secure data exchange between CleverTap and CPaaS providers.

Once encryption is enabled, it applies automatically to outbound requests and inbound callbacks, ensuring end-to-end data security.

The setup section of each channel outlines the configuration steps, encryption behavior, and testing procedures required to enable CPaaS encryption.

Email Encryption Setup

The Email Channel Setup page helps administrators configure authentication and encryption settings for email campaigns. Users can access it under Settings > Channels > Email > Setup, where they can define sender details, authentication type, and enable encryption for outbound email payloads.

Authentication Configuration

Use this section to define sender details and enable encryption for outbound emails.

📘

Enabling Encryption for Email

To ensure all outbound email payloads are securely encrypted, make sure to select the Enable encryption before saving your settings.

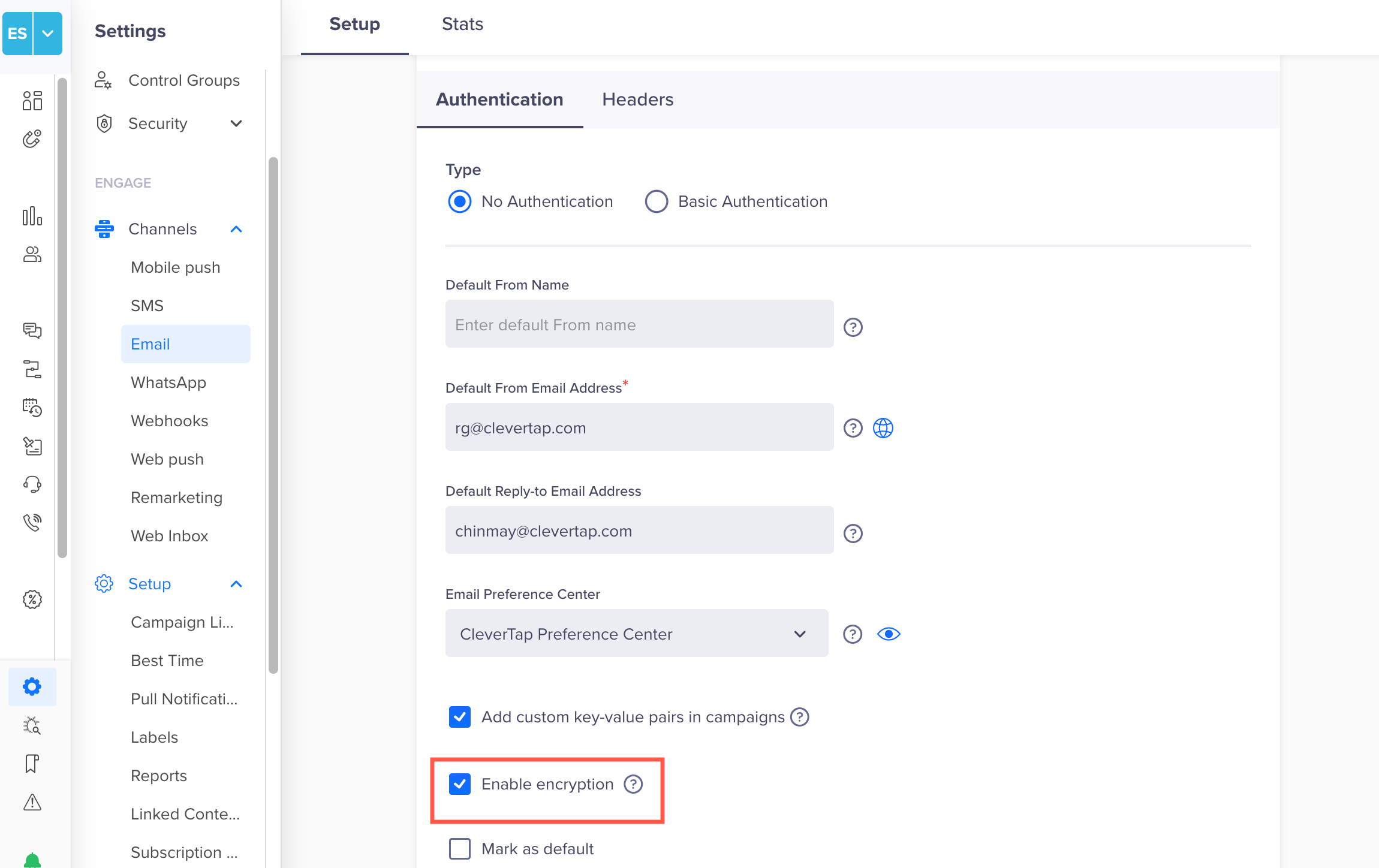

The following image shows the Email Setup page in the CleverTap dashboard, where users can enable encryption and define authentication settings for their email channel.

When encryption is enabled, CleverTap encrypts all outbound email payloads using AES-256 before sending them to the CPaaS provider. This ensures message and user data confidentiality.

Payload Encryption

CleverTap encrypts both outbound email payloads and inbound callbacks using AES-256 symmetric encryption.

Outbound Request Example (CleverTap → CPaaS)

When CleverTap sends an encrypted email payload, it follows this process:

1. CleverTap retrieves the active encryption key and generates a random initialization vector (IV).
2. CleverTap encrypts the email content and metadata using AES-256 encryption.
3. CleverTap includes the ciphertext, IV, and key version in the request payload.
4. CleverTap transmits the encrypted payload securely to the CPaaS provider through the Generic HTTP API.

Encrypted Callback Example (CPaaS → CleverTap)

When the CPaaS provider sends an encrypted callback to CleverTap:

1. CleverTap identifies the correct key using the X-AES-KEY-VERSION.
2. CleverTap decrypts the payload using AES-256 and the provided initialization vector (IV).
3. CleverTap parses message delivery, open, or bounce data and updates campaign analytics accordingly.

SMS Encryption Setup

The SMS Channel Setup enables administrators to configure authentication and encryption for SMS campaigns.
Users can access this under Settings > Channels > SMS > Setup where they define provider details, authentication type, and encryption preferences for outbound and callback payloads.

Provider Configuration

The following table lists the various fields while configuring the provider:

Authentication Configuration

Under the Authentication tab, perform the steps below:

1. Choose the authentication type — No Authentication, Basic Authentication, or OAuth 2.0.
2. (Optional) Select Custom Key–Value pairs in campaigns to include additional fields.
3. Select the Enable encryption to activate AES-256 for outbound requests and accept encrypted callbacks.

📘

Enabling Encryption for SMS

To ensure all outbound SMS payloads are securely encrypted, make sure to select the Enable encryption before saving your settings.

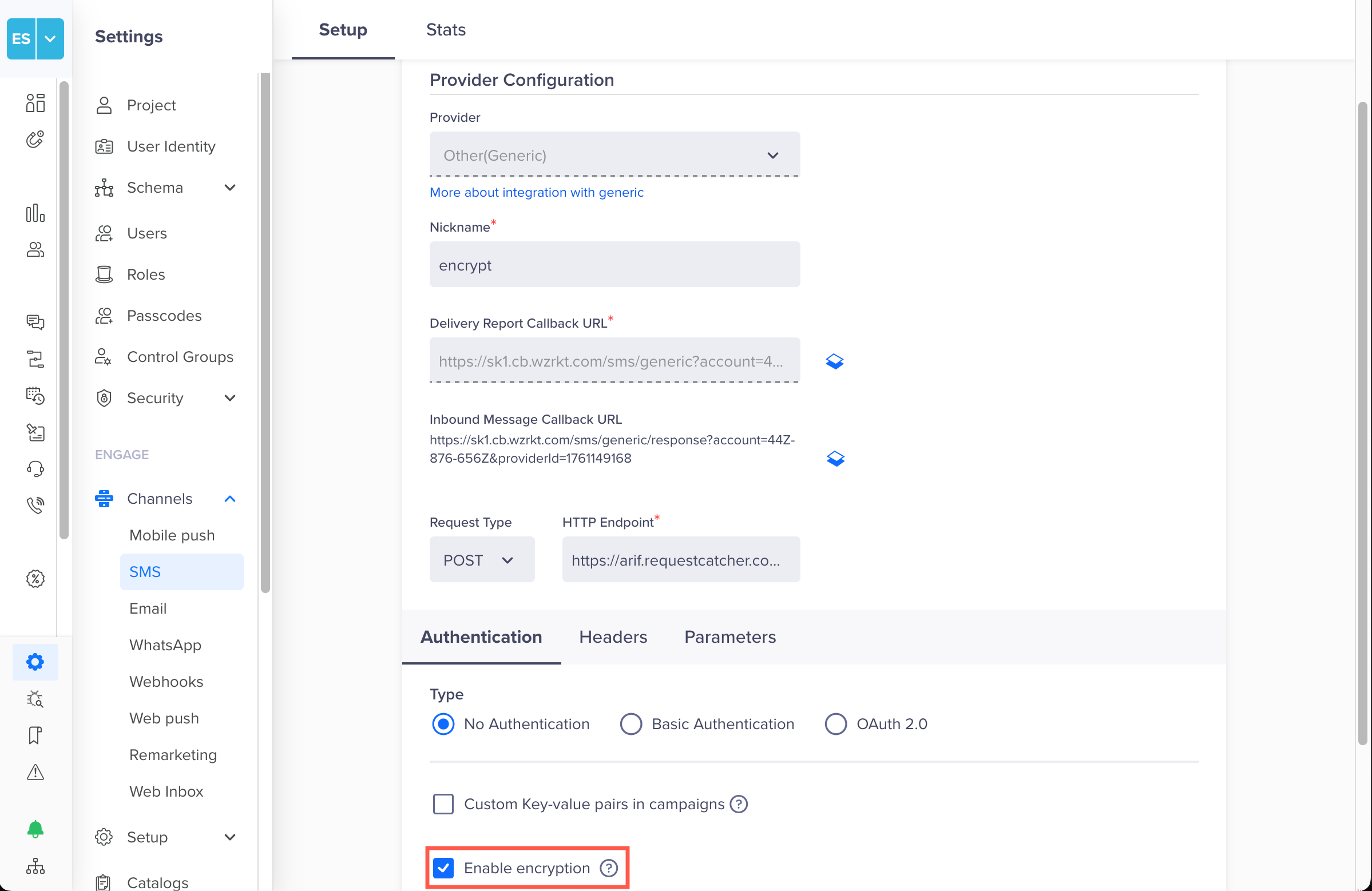

The following image shows the SMS Setup page in the CleverTap dashboard, where administrators can configure authentication and enable encryption for SMS campaigns.

Payload Encryption

CleverTap encrypts both outbound SMS payloads and inbound callbacks using AES-256 symmetric encryption.

Outbound Request Example (CleverTap → CPaaS)

When CleverTap sends an SMS request to the CPaaS provider, Clevertap follows a secure encryption process to protect message data during transmission:

1. CleverTap retrieves the active encryption key and generates a random initialization vector (IV).
2. CleverTap encrypts the message payload using AES-256 encryption.
3. CleverTap includes the ciphertext, IV, and key version in the HTTP request payload.
4. CleverTap transmits the encrypted payload securely to the CPaaS provider.

Encrypted Callback Example (CPaaS → CleverTap)

When the CPaaS provider sends an encrypted callback to CleverTap:

1. CleverTap identifies the correct key using the X-AES-KEY-VERSION.
2. CleverTap decrypts the payload using AES-256 and the provided initialization vector (IV).
3. CleverTap parses and records delivery or inbound message details in the platform.

Testing and Validation

After configuration, validate encryption to ensure successful setup and accurate callback processing. Follow the steps below to test and validate the encryption:

1. Send a test SMS from CleverTap.
2. Verify that the CPaaS provider receives an encrypted ciphertext instead of plain text.
3. Confirm that callback payloads from the provider are also encrypted.
4. Ensure that delivery and engagement metrics display accurately after decryption.

FAQs

Who manages encryption keys?

CleverTap generates, manages, and securely shares all encryption keys with CPaaS providers.

Does CleverTap encrypt the full payload?

Yes. The entire outbound and inbound payload is encrypted using AES-256 symmetric encryption.

Which encryption standard is used?

CleverTap uses AES-256-CBC encryption with a random initialization vector (IV).

How does key rotation work?

Each payload includes a key version. CleverTap retrieves the corresponding key and decrypts the payload seamlessly, ensuring no service disruption.

Can other channels use CPaaS encryption?

Encryption is currently available for Email and SMS.

Is there a UI to manage keys?

No. Key management is handled internally by CleverTap.
