Overview

Radar is a comprehensive location platform offering geofencing, geocoding, and mapping services to empower location-based experiences across millions of devices.

With the CleverTap and Radar integration, you can enhance your marketing campaigns with location-based intelligence as follows:

• Triggering promotional campaigns when users are near a physical store.
• Showing nearby service centers via In-App messages.
• Engage with users based on geolocation history.

Prerequisites for Integration

To integrate Radar with CleverTap, ensure the following prerequisites are met:

• You have a Radar account with access to the Publishable API Key.
• You have an active CleverTap account.
• Latitude and longitude values are stored in CleverTap user profiles, preferably as custom user properties.

Integrating Radar with CleverTap

The integration process involves the following three major steps:

1. Locate Radar API Key
2. Configure Linked Content API
3. Create Personalized Campaign

Locate Radar API Key

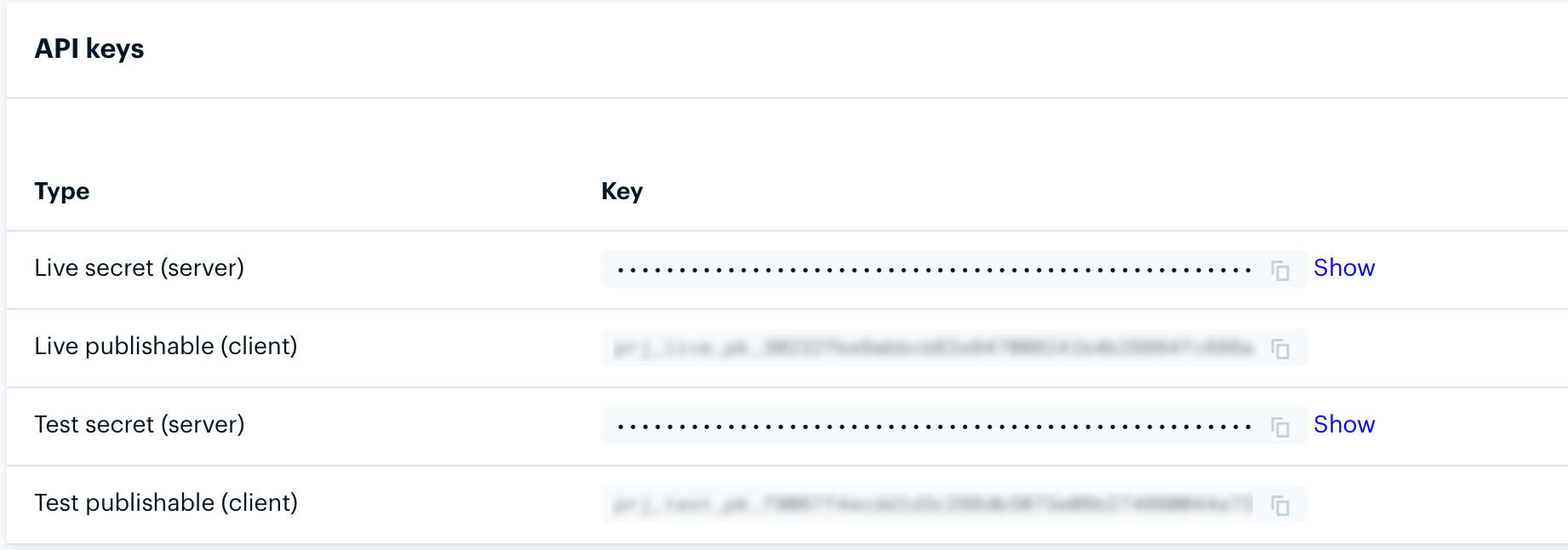

To complete the integration process, you will need your Radar API key. After logging into your Radar account, go to Home section to find the key.

Configure Linked Content API

To integrate Radar's Search Places API with CleverTap, configure the Linked Content API. To do so, perform the following steps:

1. Go to Settings > Setup > Linked Content from the CleverTap dashboard.

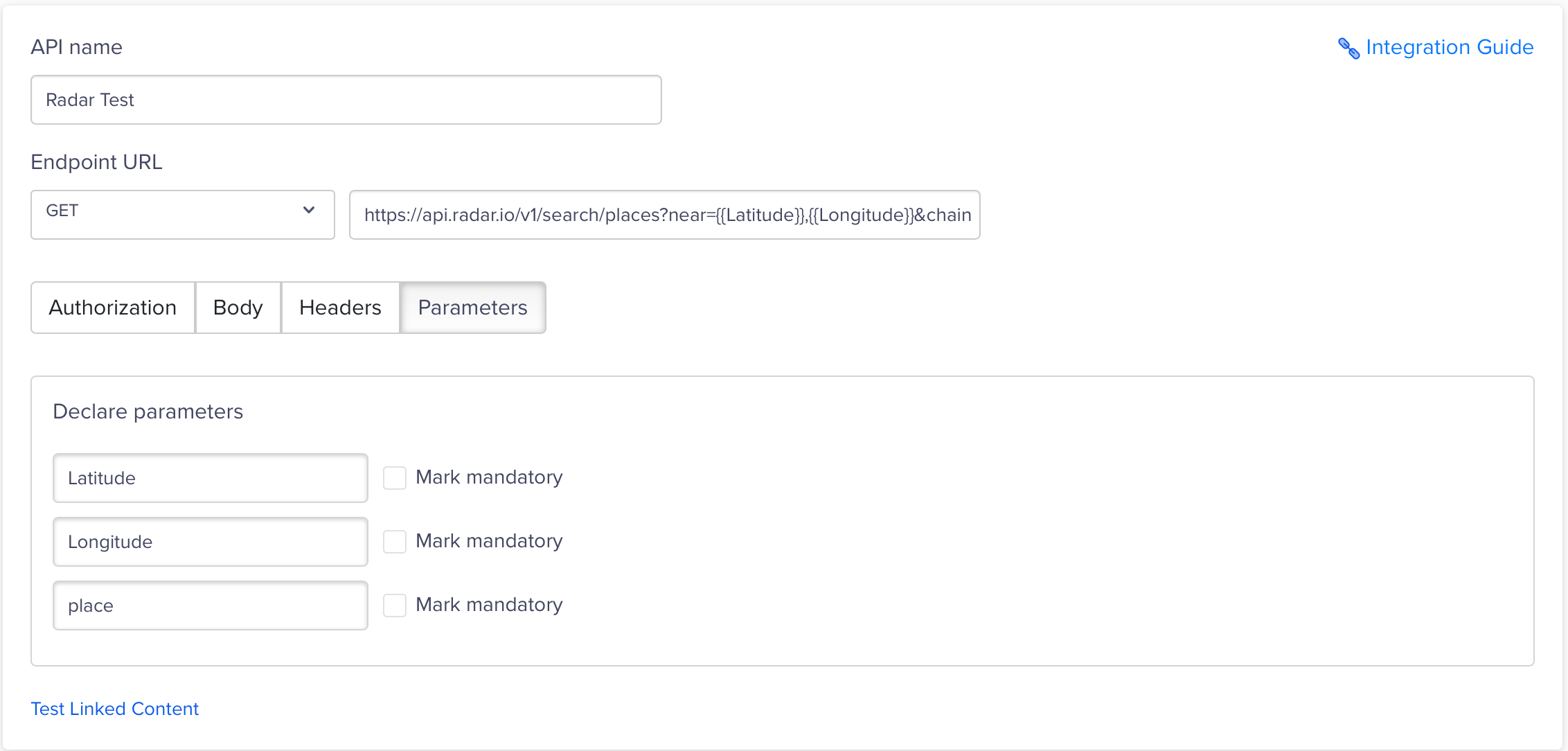

2. Click + Linked Content and enter the following:

This endpoint uses the following three parameters:

• Latitude and Longitude pulled from user profile (custom properties)
• place: chain name to search near the user (for example, starbucks)

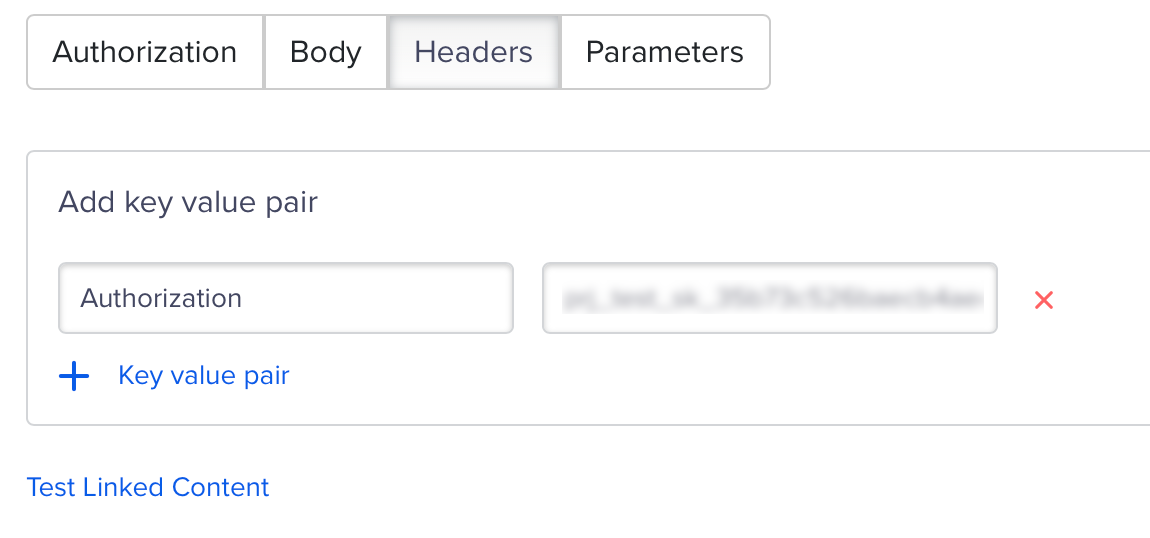

3. Under Headers, add the following:
   • Authorization: <your-api-key>

4. Click Test the Linked Content using sample values. The following is a sample response:

{
  "meta": { "code": 200 },
  "places": [
    {
      "_id": "61dda2c10bb02c4952d5005e",
      "name": "Starbucks",
      "location": {
        "type": "Point",
        "coordinates": [72.83543684530189, 19.172690329535484]
      },
      "categories": ["food-beverage", "cafe"],
      "chain": {
        "slug": "starbucks",
        "name": "Starbucks",
        "domain": "starbucks.com"
      }
    }
  ]
}

5. Click Auto-Fill Objects with Response to automatically handle responses and populate objects.

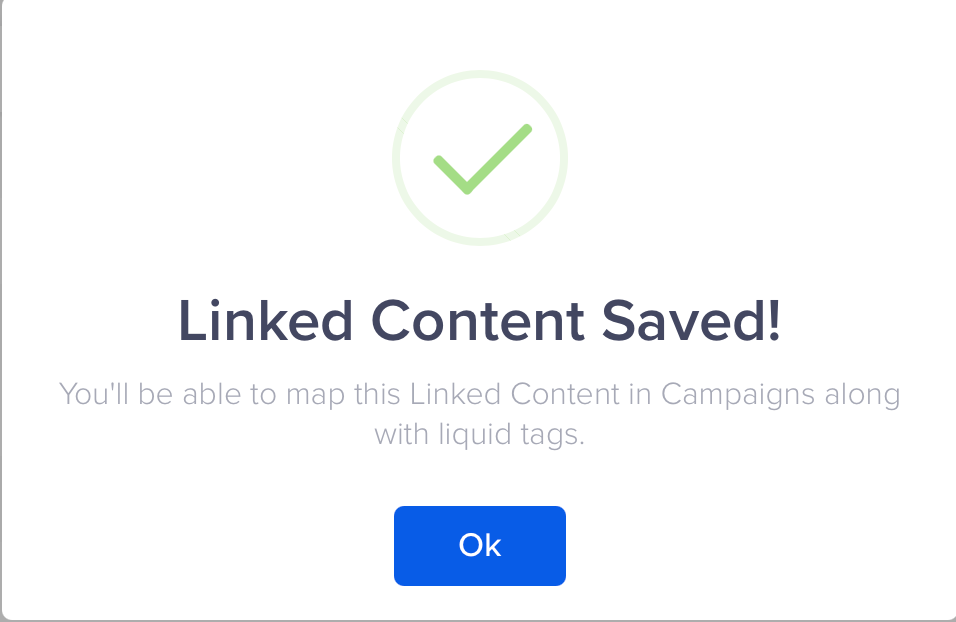

6. Click Test and save changes to complete the setup.

🚧

Caution

Radar's Search Places API has a default rate limit of 100 requests/min. Plan campaign traffic accordingly.

Create Personalized Campaign

You can use the Linked Content API integration with Radar to power location-based personalization in your CleverTap messaging campaigns.

To integrate a Radar into your CleverTap Push campaign, perform the following steps:

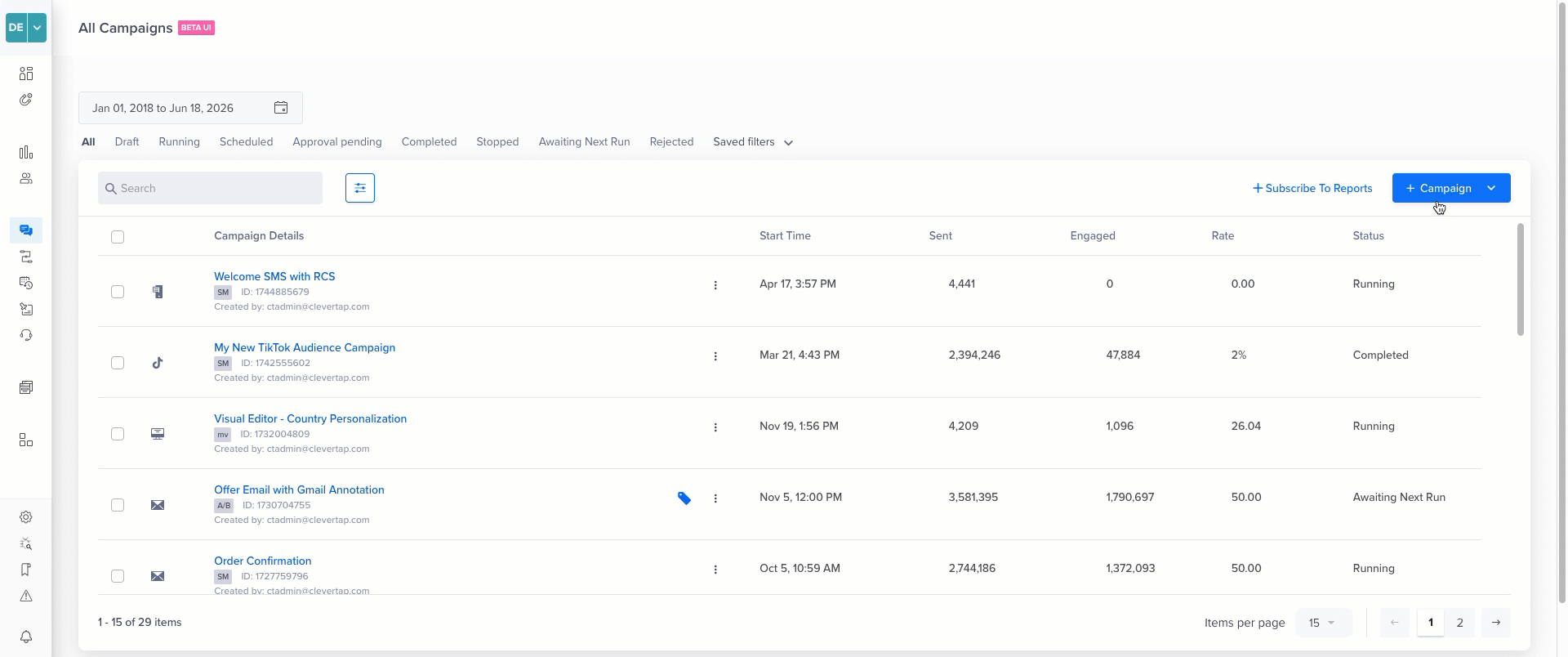

1. Go to the Campaigns page, click + Campaign, and select Push Notification from the list of messaging channels.

2. Click Go to Editor under the What section.

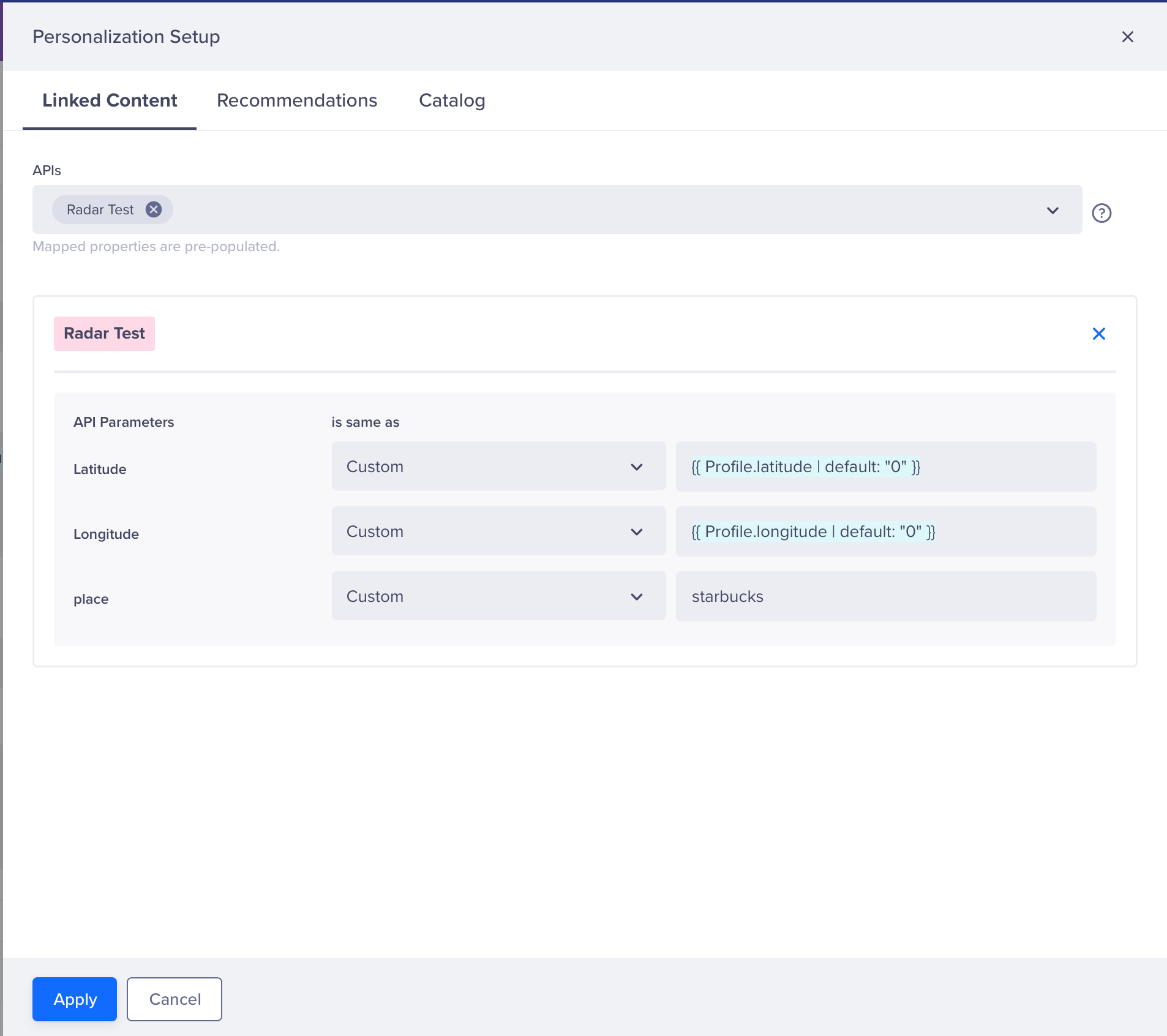

   1. Click Personalization.
   2. Select the Linked Content configured under Configure Linked Content API and click Apply.

3. Map the required API parameters to personalize the message:
   • Latitude → {{ Profile.lat }}
   • Longitude → {{ Profile.long }}
   • Place → chain slug (for example, starbucks)

4. Use Liquid tags to personalize the message with nearby place data from the Linked Content API. The dynamic fields in the API response let you insert real-time location details directly into the message. For example:
   Example 1: Display the First Nearby Place

   Welcome to {{ Linked["Nearby Radar Places"].places[0].name | default: "our store" }}


   Example 2: List Up to 5 Nearby Places

   Explore nearby spots:
   {% for place in Linked["Nearby Radar Places"].places limit:5 %}
   - {{ place.name | default: "store" }}
   {% endfor %}


   Example 3: Show Places Only If Available
   Use a conditional check to ensure the campaign is only sent if at least one nearby place is detected.

   {% if Linked["Nearby Radar Places"].places and Linked["Nearby Radar Places"].places.size > 0 %}
   Check these places near you:
   {% for place in Linked["Nearby Radar Places"].places limit:5 %}
   {{ place.name | default: "store" }}
   {% endfor %}
   {% endif %}

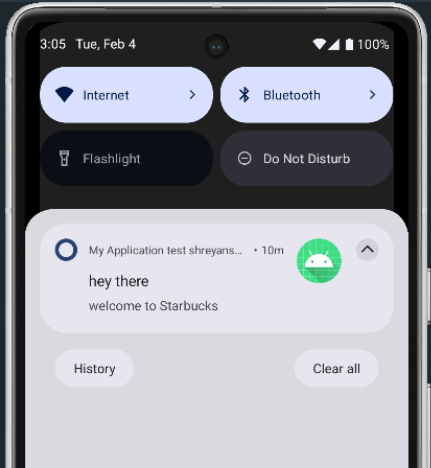

5. Click Preview and Publish to test and launch the campaign.

By combining Radar’s location intelligence with CleverTap’s personalization engine, you can deliver hyperlocal, context-aware campaigns that drive real-world engagement and customer delight.
